2. Polished solid stainless steel rod reduces spring bind.
3. Polished rod surface provides smoother cycling.
4. 303 stainless steel rod would not wear out slide.
MAGLOC®

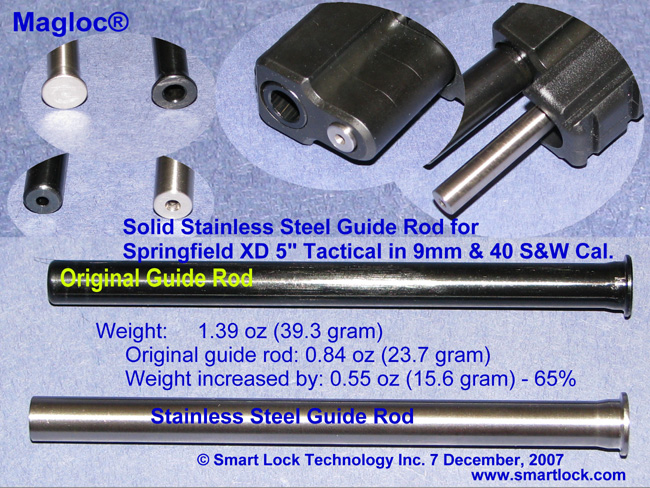

1. Solid Steel Guide Rod for Springfield XD/HS 2000 pistols 5" Tactical Model in 9mm and .40 S&W Cal. US$19.00
Does not fit XDm
Features:
1. Added weight at front reduces muzzle
jump.
2. Polished solid stainless steel rod reduces spring bind.
3. Polished rod surface provides smoother cycling.
4. 303 stainless steel rod would not wear out slide.
Specification:
1. Fits Springfield XD/HS 2000 models 5"
Tactical Model in 9mm & .40 S&W cal. (Does not fit 4" Service Model, compact or
sub-compact model)
2. Made of solid mild steel rod.
3. Weight: 1.39 oz (39.3 g ram)
Original guide rod: 0.84 oz (23.7 gram)
Weight increased by: 0.55 oz (15.6 gram) - 65%
Installation:
*Note: If you are not comfortable with
the installation procedures described below, please have the work done by a
qualified gunsmith.*
**Make sure the firearm is unloaded before installation begins**
***Wear eye protection as the guide rod or other parts might shoot out from the
slide during disassembly and installation. ***
1. Separate the slide from the frame as
per XD user manual.
2. Release the guide rod and recoil spring from the barrel.
3. Separate the original guide rod from the recoil spring.
4. Insert the replacement stainless steel guide rod into the recoil spring.
5. Insert the guide rod and recoil spring assembly onto the barrel.
6. Reinstall the slide back to the frame.
7. Test fire at an approved area to get use to the system.
*******************************

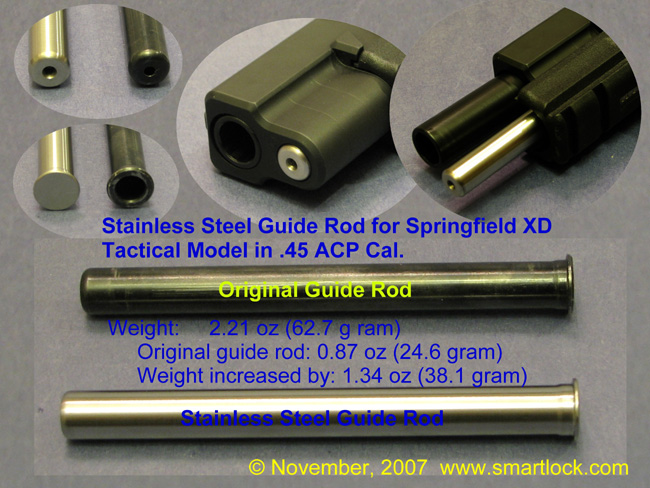

2. Solid Stainless Steel Guide Rod for Springfield XD/HS 2000 pistols 5" Tactical Model in .45ACP US$20.00
Specification:
1. Fits Springfield XD/HS 2000 models 5"
Tactical Model in .45ACP cal. (Does not fit 4" Service Model, compact or
sub-compact model)
2. Made of solid 303 stainless steel rod.
3. Weight: 2.21 oz (62.7 g ram)
Original guide rod: 0.87 oz (24.6 gram)
Weight increased by: 1.34 oz (38.1 gram) - 154%
3. Solid Stainless Steel Guide Rod for Springfield XDM - 4.5 inch, 5.25 inch model in 9mm, 40S&W and 45ACP cal. pistols.
US$20.00
Specification:
1. Fits Springfield XDM
- 4.5 inch, 5.25 inch model in 9mm, 40S&W
and 45ACP cal. pistols. (Does not fit XD, 4" Service Model, compact or
sub-compact model)
2. Made of solid 303 stainless steel rod.
3. Weight: 1.95 oz (55.2 gram)
Original guide rod: 0.76 oz (21.6 gram)
Weight increased by: 1.19 oz (33.6 gram) - 155%
Installation:
*Note: If you are not comfortable with
the installation procedures described below, please have the work done by a
qualified gunsmith.*
**Make sure the firearm is unloaded before installation begins**
***Wear eye protection as the guide rod or other parts might shoot out from the
slide during disassembly and installation. ***
1. Separate the slide from the frame as
per XD user manual.
2. Release the guide rod and recoil spring from the barrel.
3. Separate the original guide rod from the recoil spring.
4. Insert the replacement stainless steel guide rod into the recoil spring.
5. Insert the guide rod and recoil spring assembly onto the barrel.
6. Reinstall the slide back to the frame.
7. Test fire at an approved area to get use to the system.
