MAGLOC®
Extended Magazine Release for Glock Pistols

We have three types of extended magazine release available:

1. Gen 4 Glock 17, 19, 22, 34... (9mm; 357 SIG and 40 S&W cal. frame) released 2/2015
2.  Gen 1 to 3 Glock 17, 19, 22, 34...(9mm; 357 SIG and 40 S&W cal. frame)
3. Gen 1 to 3 Glock 20, 21 (10mm and 45ACP cal. frame)


Feedbacks from our customers on Gen 1 to 3 mag release:

These Glock mag release's r the best, I use them & I'm 6 yr state Champ,
Jailer - USA

"Fast shipping! I actually prefer this one to it's $30 counterpart!

Kenneth G. TX"



Youtub installation instruction for Gen 4 Extended Mag Release

1. Gen 4 Glock 17, 19, 22, 34... (9mm; 357 SIG and 40 S&W cal. frame)

 Price: US $14.00



This Glock Gen4 Extended magazine release is a made from high strength polymer material (same as the gun) and fits all small frame and standard frame generation 4 Glock pistols.  It can be installed for right or left hand operation and extended 0.145 (3.7mm) from the factory magazine release.  The shape of the extension can be modified to fit individual needs.  It is a very simply modification for fast magazine exchange for competition; shooters with big or small hands.


Features:

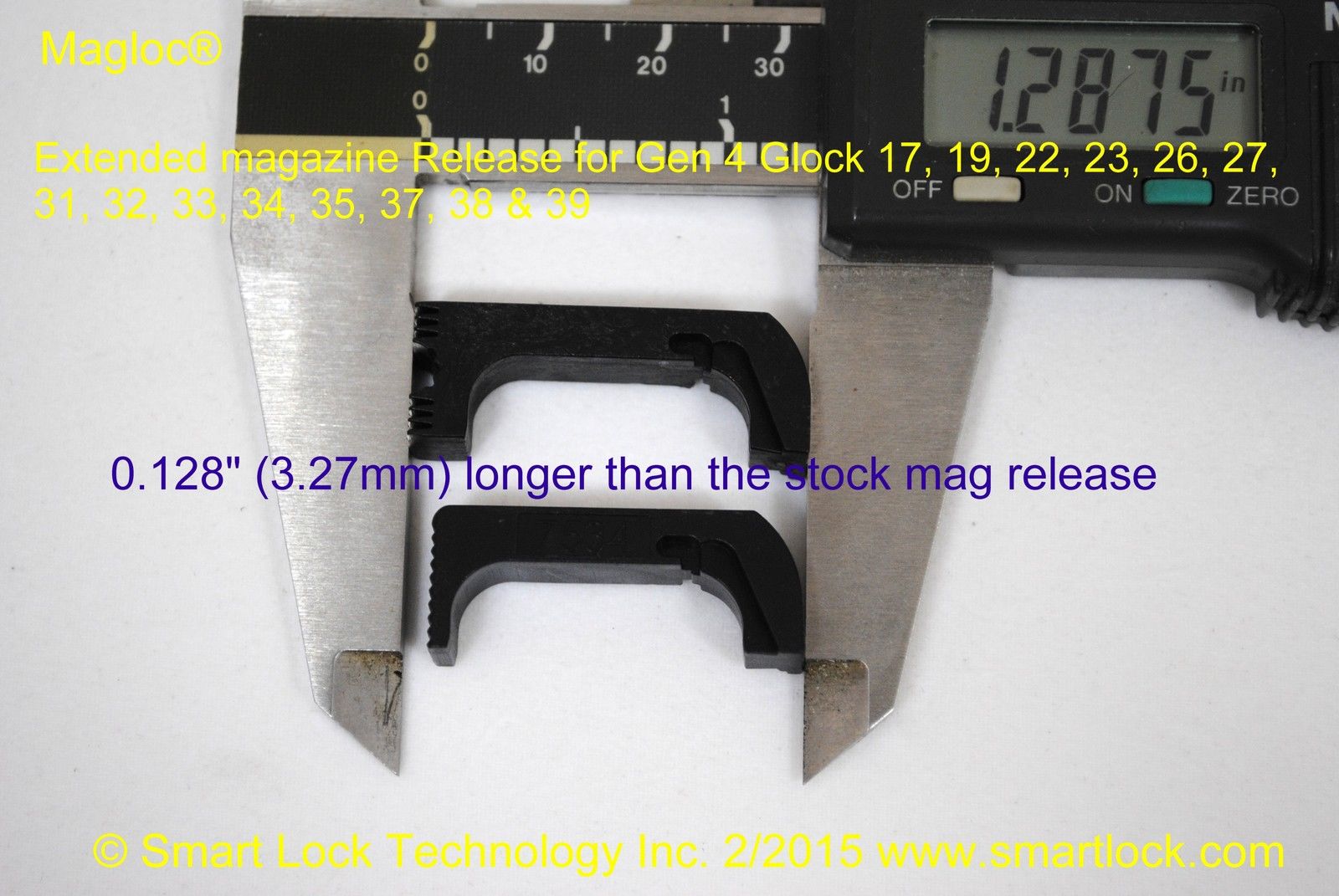

1. 0.145" (3.7mm) extended out from the factory mag release.

2.  Made from high strength polymer material (same as the gun) and would not wear out frame slot of the firearm or factory magazines.

2.  Release button can be installed with the release button on the left hand or right hand side of the frame (same as the original mag release).

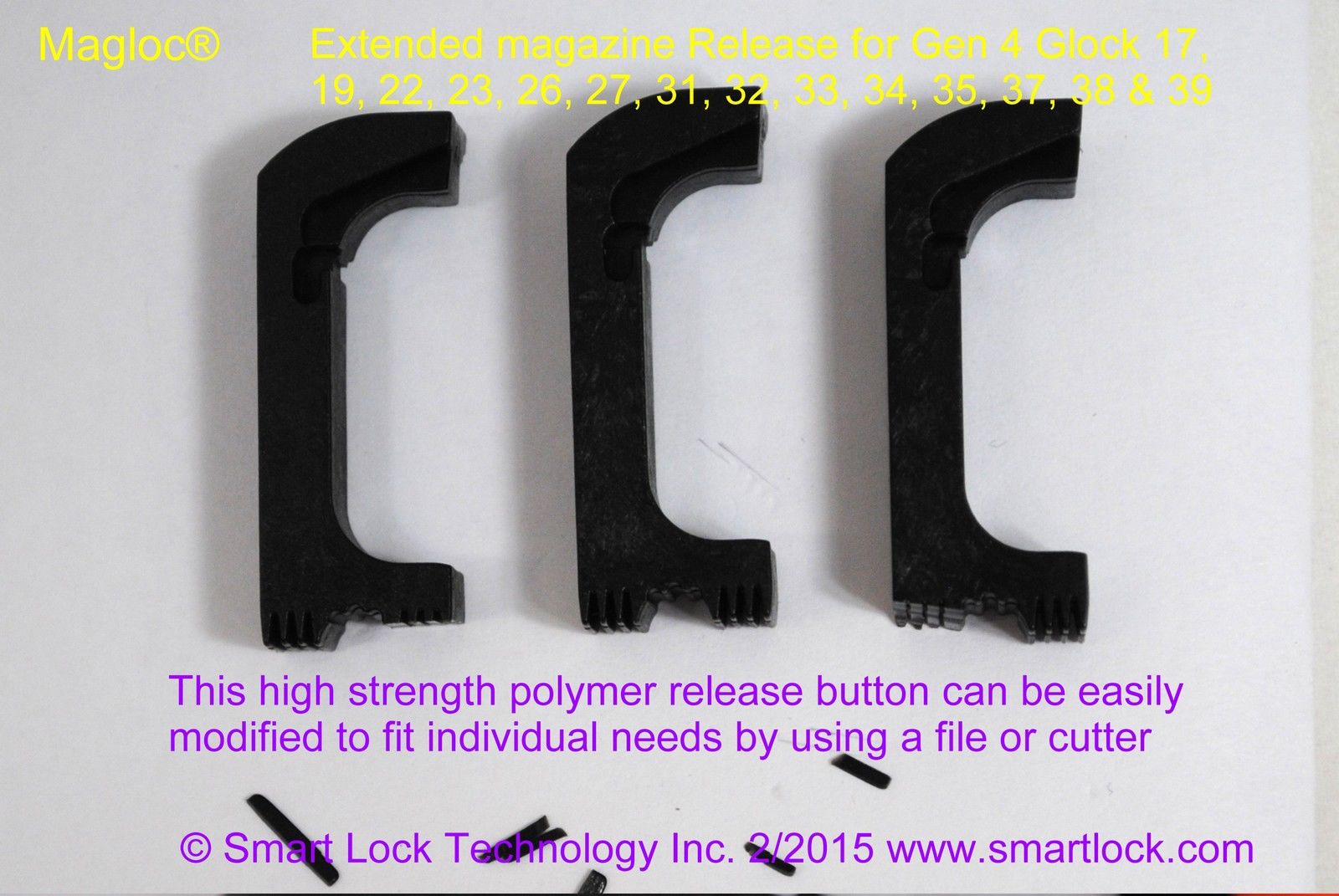

3.  This high strength polymer release button can be easily modified to fit individual needs by using a file or cutter.



Specification:

1.  Fits the following GLOCK GEN4 Glock: 17, 19, 22, 23, 26, 27, 31, 32, 33, 34, 35, 37, 38 & 39    (Does not fit Gen 3 or Gen 4 G20,21)

2.  Weight: 0.052 oz (1.46 gm).

3.  Additional length over the factory mag release: 0.106" (2.7 mm).
(Note: different shooting sports have different limitation on firearms modification; please consult with the proper authority.)

Installation:
Warning
 -  before installation begins.
1.  Always wear eye protection if assembly or disassembly of firearms is required.

2.  If you are not comfortable with the installation procedures described below, please have the work done by a qualified gunsmith.

3.  Make sure the gun is unloaded before installation begins

Please search installation of Glock Gen 4 magazine release on youtube.
youtube instruction https://www.youtube.com/watch?v=saFbwfEIa8w





Steps

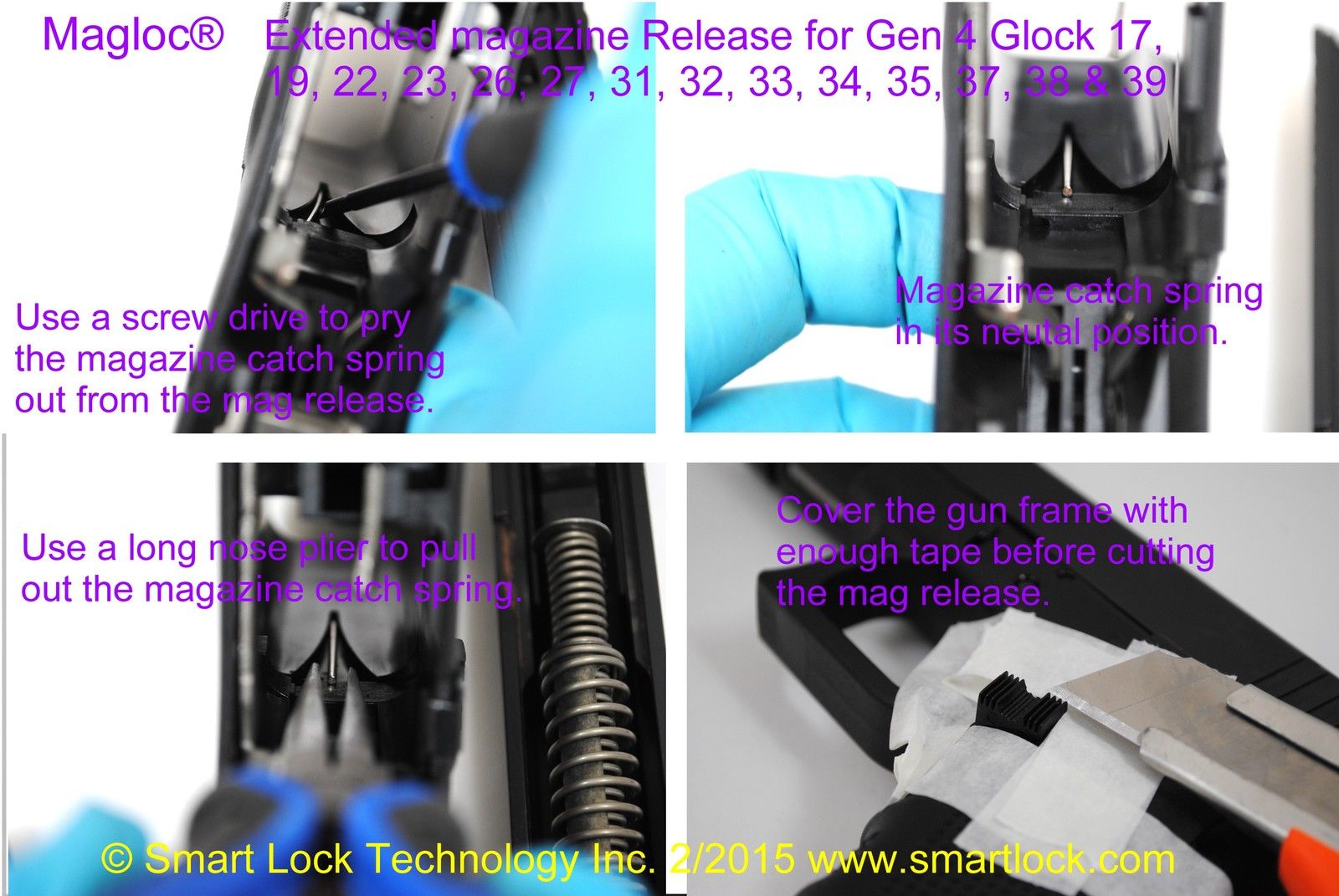

1.    Separate the slide form the frame as per Glock manual.

2.    With the front end of the frame pointing to you, use your hand to hold down the mag release while using a screwdriver to pry the "magazine catch spring" out from the groove of the mag release.

3.  Use a long nose pliers to pull out the "magazine catch Spring"

4.  Slide the mag release out of the frame.

5.  Reverse the steps to install the extended mag release.

Warning:  After installation, test fire your pistol in various shooting position and  making sure that your hands would not accidental activate the extended magazine release.  Also holster test the proper function of the extended magazine release.

****************************************************************************************************

2.  Gen 1 to 3 Glock 17, 19, 22, 34...(9mm; 357 SIG and 40 S&W cal. frame)
(does not fit Gen.4 Glocks)  Price: US $14.00


Features:

1. Made of polymer material (same as the gun) and would not wear out frame slot or factory magazines.

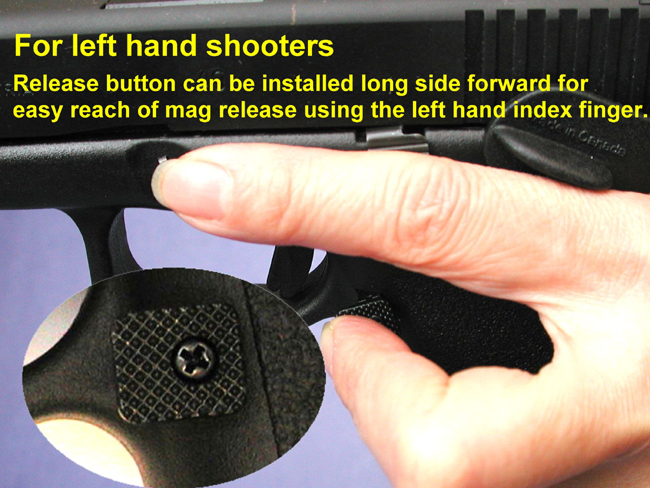

2.  Release button can be installed long side forward for easy reach of mag release using the left hand index  finger.

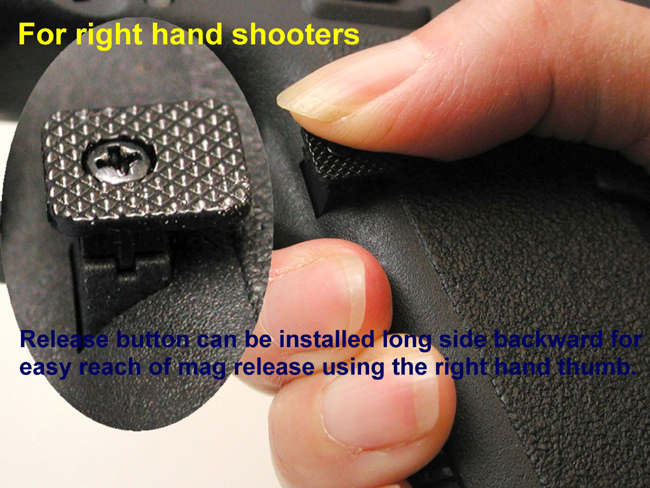

3.  Release button can be installed long side backward for easy reach of mag release using the right hand thumb.

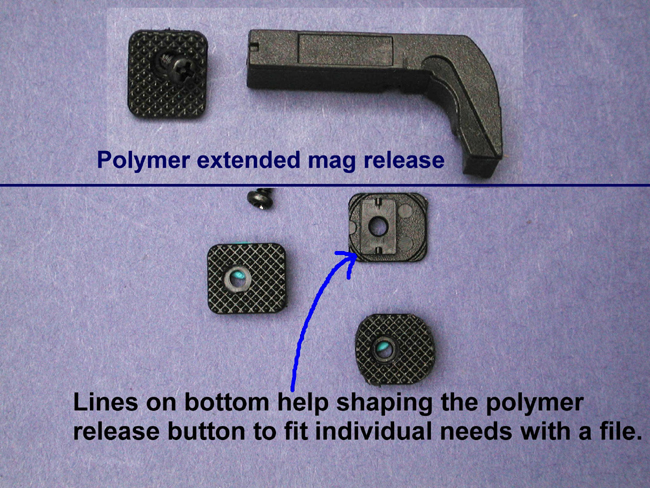

4.  Lines on bottom help shaping the polymer release button to fit individual needs with a file.

Specification:

1.  Fits all Glock models except Slim line Glock 36, 10mm and .45 cal Glock.
      (does not fit Gen.4 Glocks)

2.  Total weight:   0.06 oz (1.6gram)

3.  Additional width over the standard mag release: 0.128" (3.27mm).
(Note: different shooting sports have different limitation on firearms modification, please consult with the proper authority.)

Installation:
Warning - always wear eye protection if assembly or disassembly of firearms is required.
If you are not comfortable with the installation procedures described below, please have the work
done by a qualified gunsmith.

Make sure the gun is unloaded before installation begins

You can also search the web for the installation of Glock magazine release.

1.    Separate the slide form the frame.

2.    With the front end of the frame pointing to you, use your left hand thumb to hold down the mag release while using a screwdriver to pry the mag release spring out from the groove.

3.    Slide the mag release out of the frame.

4.    Reverse the steps to install the extended mag release.

Warning:  After installation, test fire your pistol in various shooting position and  making sure that your hands would not accidental activate the extended magazine release.  Also holster test the proper function of the extended magazine release.

****************************************************************************************************

3. Gen 1 to 3 Glock 20, 21 (10mm and 45ACP cal. frame)
(does not fit Gen.4 Glocks) Price: US $14.50


Specification:

1.  Fits all Glock model 20, 20SF, 21, 21SF, 29, 29SF, 30, 30SF & 30S pistols.
(does not fit slim-line G36  )


2.  Total weight:   0.06 oz (1.7gram)

3.  Additional width over the standard mag release: 0.134" (3.40mm).
Note: G21 Extended Magazine Release has no line on the bottom of the release
button to guide trimming.
