MAGLOC^®

EasyFit MagWell for Gen 4 Standard G17, 22, 27, 31, 33, 34, 35, 37 Compact G19, 23, 32 pistols^{*

*First Released: May
2012*}

　

^Highlights

This design made use of the high pressure plastic injection mould technology (same as the Glock pistol, Springfield XD, Walther P99 pistol etc) to minimize human error. Each unit is produced exactly the same as per specification.

　

Youtube installation for Gen 4 small back strap:
http://www.youtube.com/watch?v=zCbYduzlZ8s

Youtube installation for Gen 4 medium and large back strap: http://www.youtube.com/watch?v=G88Laza1Ro0

Features:
1. Improves reloading speed by 50%
2. Increases magazine well opening by 37%
3. Prevents dust from getting into handle
4. Protects magazine well of the firearm
5. EasyFit MagWell uses the spring tension of polymer material for tight fitting that will
not crack the lanyard hole.

Specification:
1. Made of glass fill nylon
2. Weight - 0.41 oz (11.7 gram)
3. Maximum outside width - 1.49” (38mm)
4. Inside opening width - 1.41” (36.0mm)
5. Original inside width of Glock 17…37 magazine well -1.03” (26.2mm)

**This EasyFit MagWell increases the original width by 0.38" (9.8mm) = 37%**

(Note: different shooting sports have different limitation on firearms modification, please consult with the proper authority.)

Installation:
Youtube: Magloc gen 4 magwell
WARNING: Wear eye protection and make sure the firearm is unloaded before installation begins. If you are not comfortable with the installation procedures described below, please have the work done by a qualified gunsmith.

1. Installed the magwell plug into the handle hole.
2. Hook the back strap (for M &L) onto the handle hole between the plug and frame.
3. Place the Magwell onto the magwell plug and tighten.
4. Check to make sure the Magwell is tight fit with the gun handle.
5. Insert an empty magazine for fitting test.
6. Re-attach the small screw onto the MagWell through lanyard hole.

Test fire your pistol in various shooting positions to get used to this new fixture.

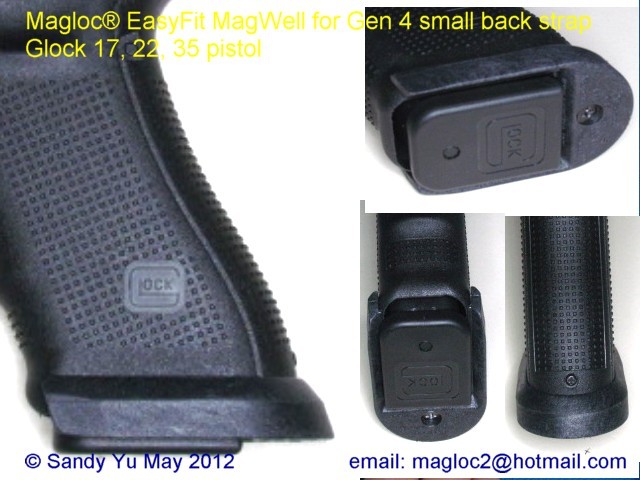

^{G17 Gen 4 S- Model for Small size back strap}Gen 4 G17 and G19 pistols. Also fits Gen 4 G19, 23, 32 and 38. ^{UPC 625214017561}
^US$29.50

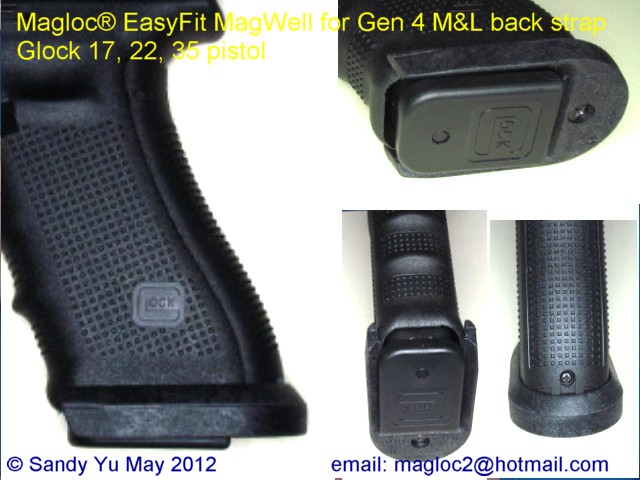

^{G17 Gen 4 M -Model for Medium size back strap}Gen 4 G17 and G19 pistols. ^{^{UPC 625214017578}}
^US$29.50

^{G17 Gen 4 L -Model for Large size back strap}Gen 4 G17 and G19 pistols. Also fits Gen 4 G19, 23, 32 and 38. ^{UPC 625214017585}

^US$29.50

***************************************************************

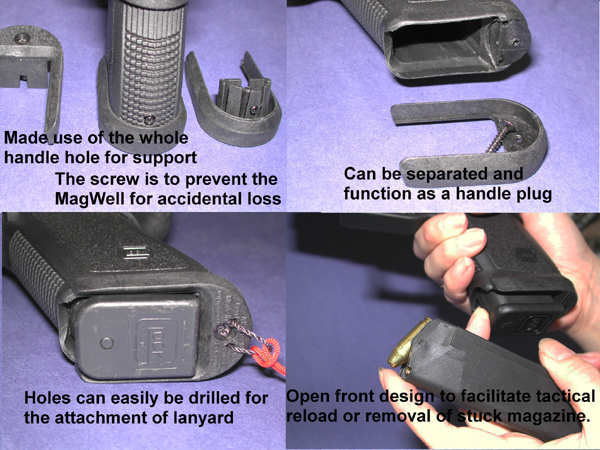

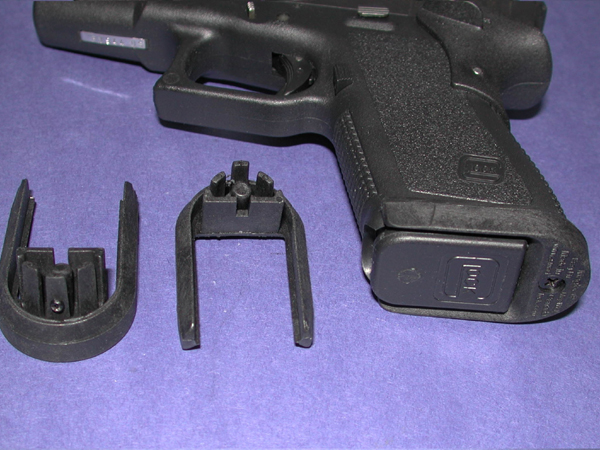

^{EasyFit MagWell for Glock Gen 1, 2 and 3 Pistols}

Features:

Improves reloading speed by 50%

Increases magazine well opening by 30%

Prevents dust from getting into firearm

Protect magazine well of firearm

No modification required

Specification:

Made of glass fill nylon - durable and long lasting

Total weight - 0.33 oz (9 gram)

Maximum width - 1.46" (37mm)

Inside width - 1.35" (34.5mm). Original Glock's inside width - 1.03" (26.2 mm)

**This EasyFit MagWell increases the original width by 0.32" (8.3mm) = 31%**

(Note: different shooting sports have different limitation on firearms modification, please consult with the proper authority.)

^{L -Model for standard frame Glock i.e. 17, 18, 22, 24, 31, 34, 35 and 37 GAP}^{UPC
625214016007} (Does not fit .45 Auto or 10mm cal. Glock) ^US$25.00Out of stock - available again on March 15, 2017

***************************************************************

^{S- Model for compact frame Glock i.e. Glock 19, 23, 25, 32 and 38.} ^{UPC 625214016}¹⁰⁶ ^US$25.00

***************************************************************

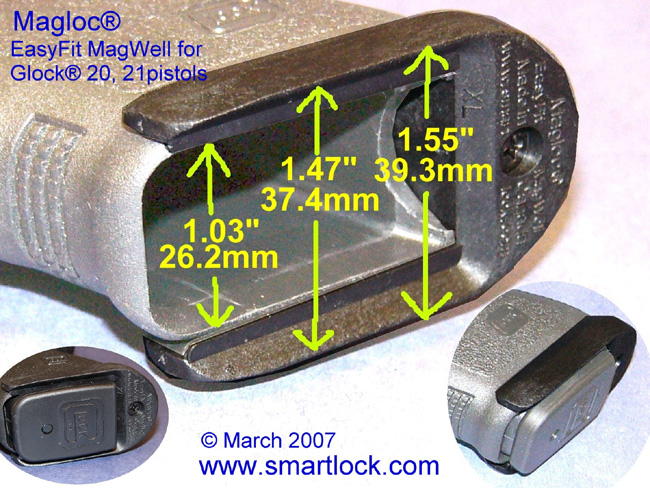

^{XL -Model for large frame Glock 20, 21 (does not fit G29, 30,
G20SF and G21SF)} ^{UPC 625214016}⁴⁰³ ^US$29.50

　

　

Specification:

Made of glass fill nylon - durable and long lasting

Total weight - 0.39 oz (11.0gram)

Maximum width - 1.55" (39.3mm)

Inside width - 1.47" (37.4mm). Original Glock's inside width - 1.03" (26.2 mm)

**This EasyFit MagWell increases the original width by 0.44" (11.2mm) = 42%**
